MOBILE RETAIL POS STATION

Scroll to zoom images +/-.

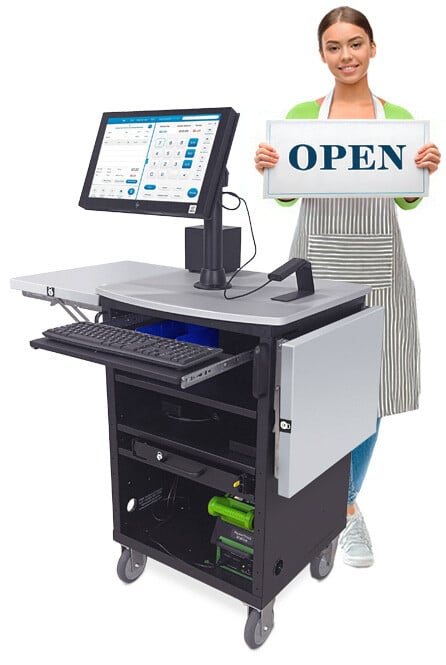

CheckMate 1000 Mobile POS Station for Retail

With floor space at a premium and lost sales a perennial peak-season problem, Newcastle’s new CheckMate 1000 gives retailers the ability to rethink how they optimize their POS stations by location, count, seasonality, and more to maximize checkout speed and convenience, while eliminating wasted space and lost sales.

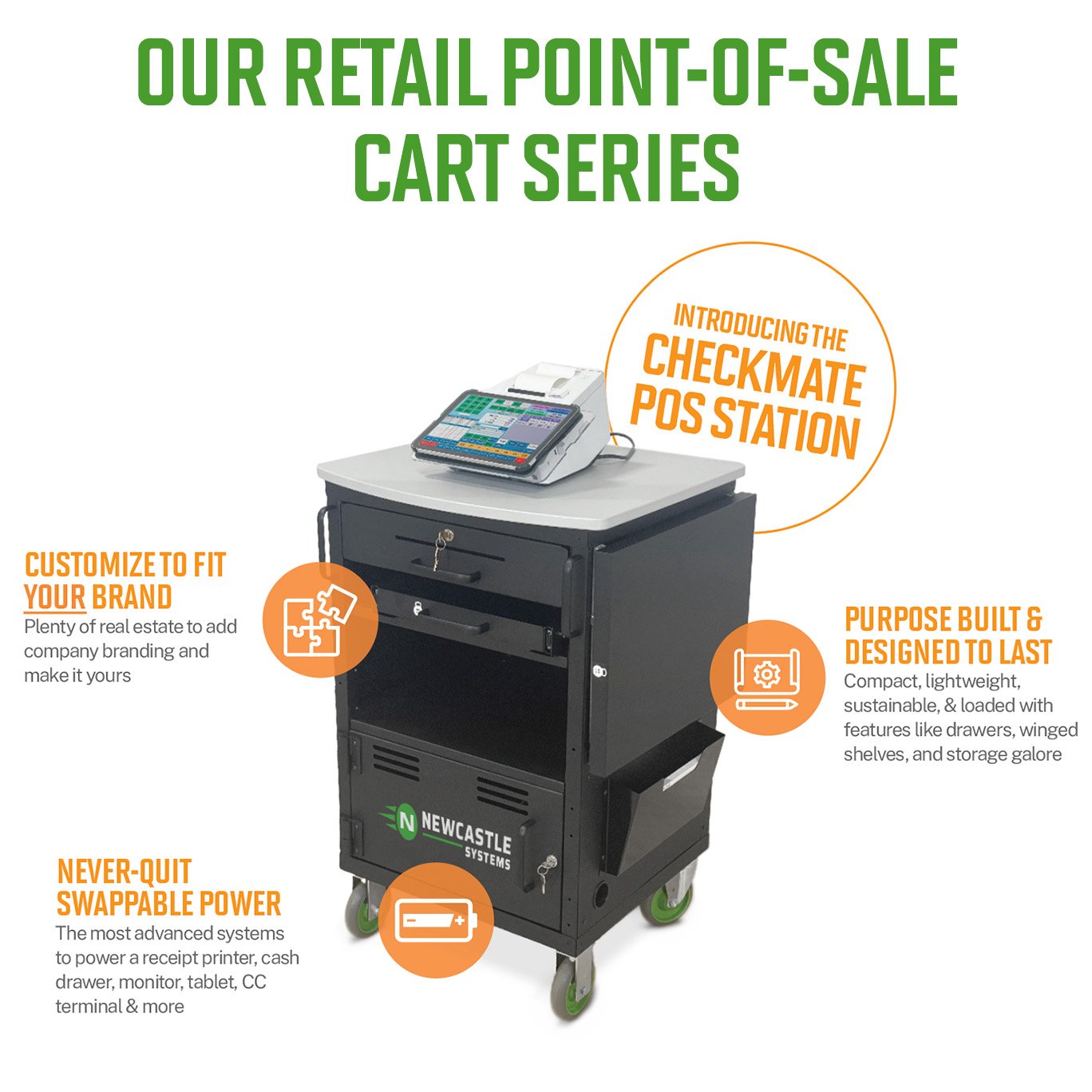

The CheckMate 1000 Offers:

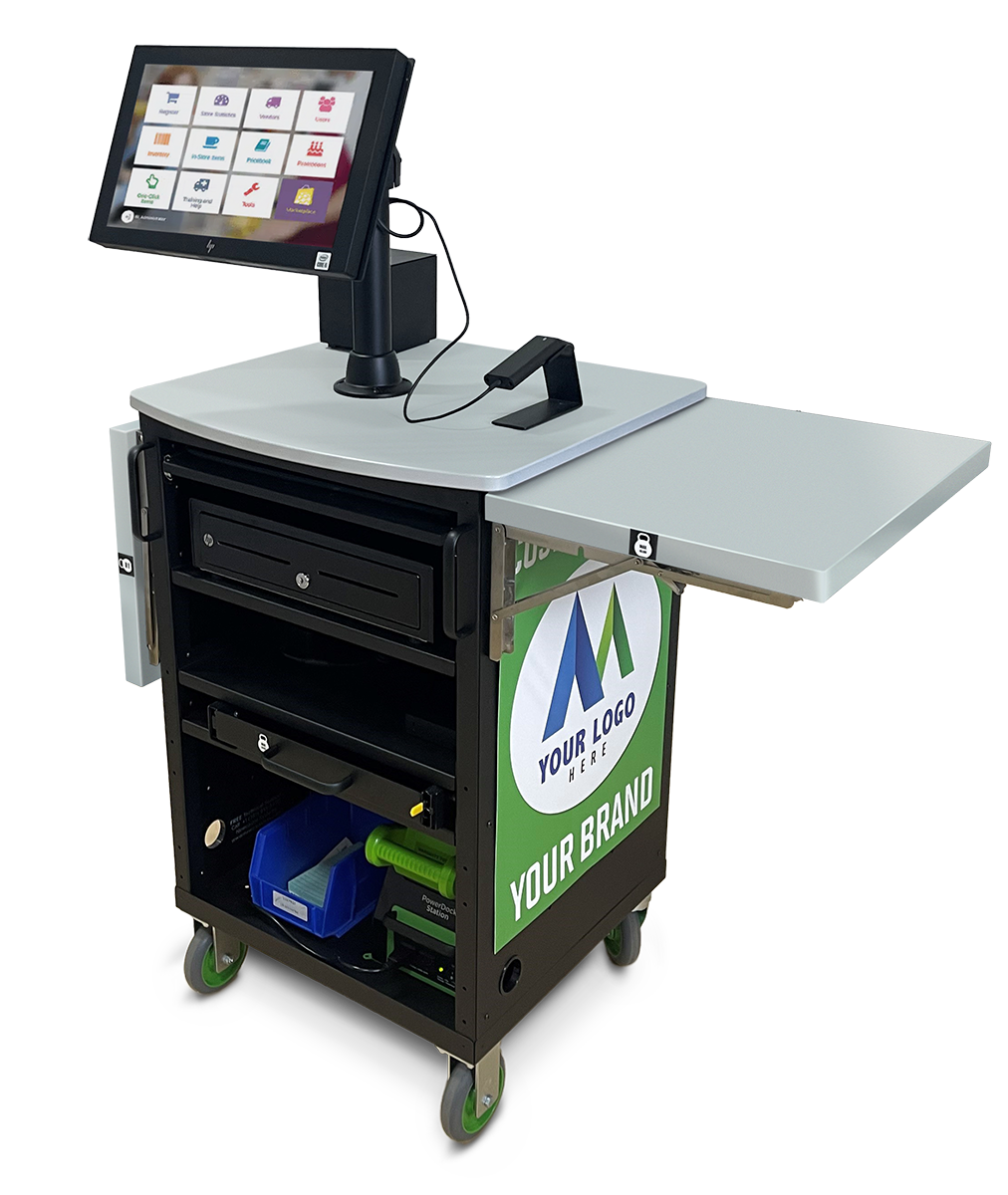

  • Customization to fit your brand. Plenty of real estate to add company branding and make it yours.

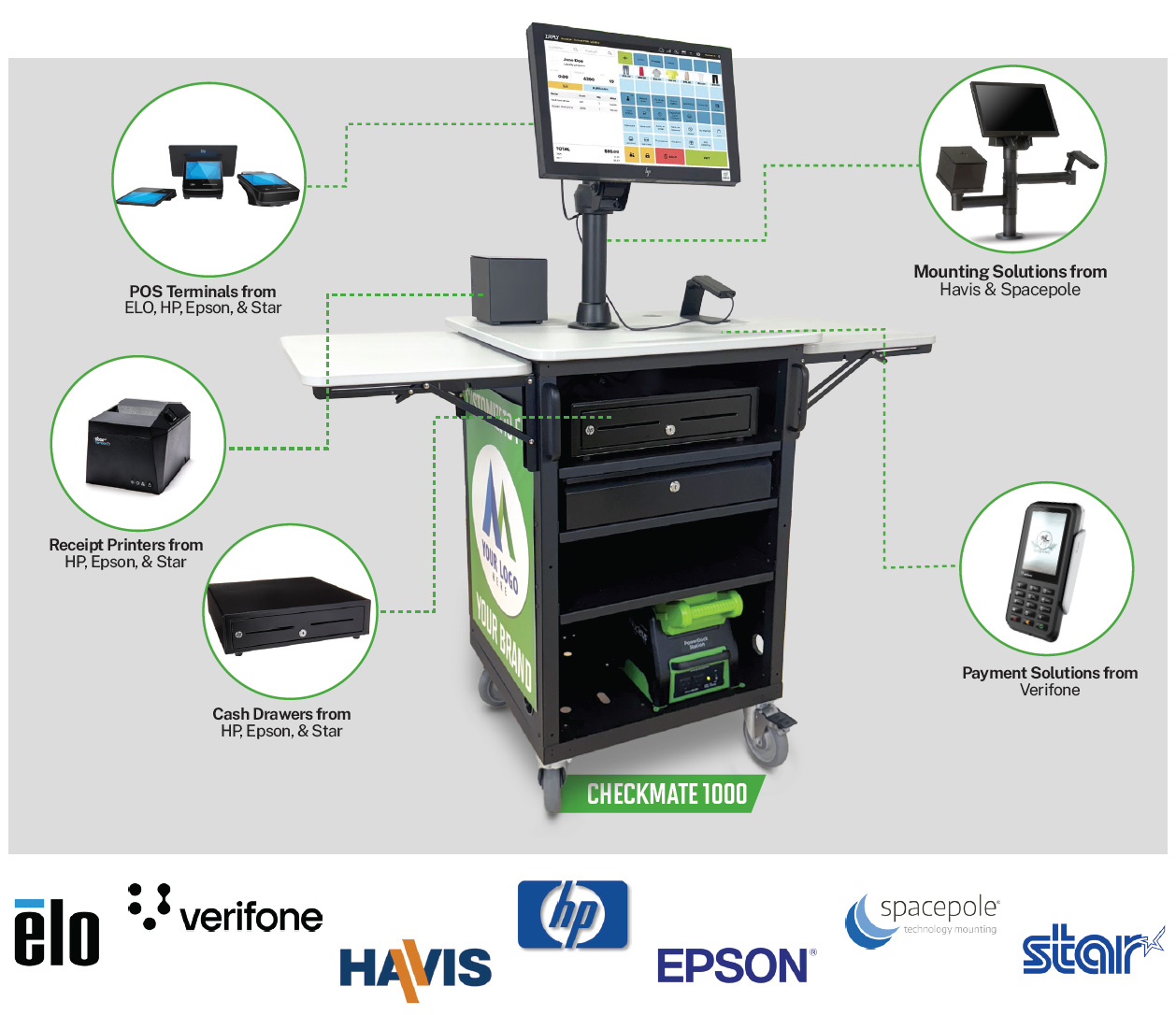

  • Never-quit swappable power: The most advanced systems to power a receipt printer, cash drawer, monitor, tablet, credit card terminal, and more.  Supports both cash and cashless transactions.

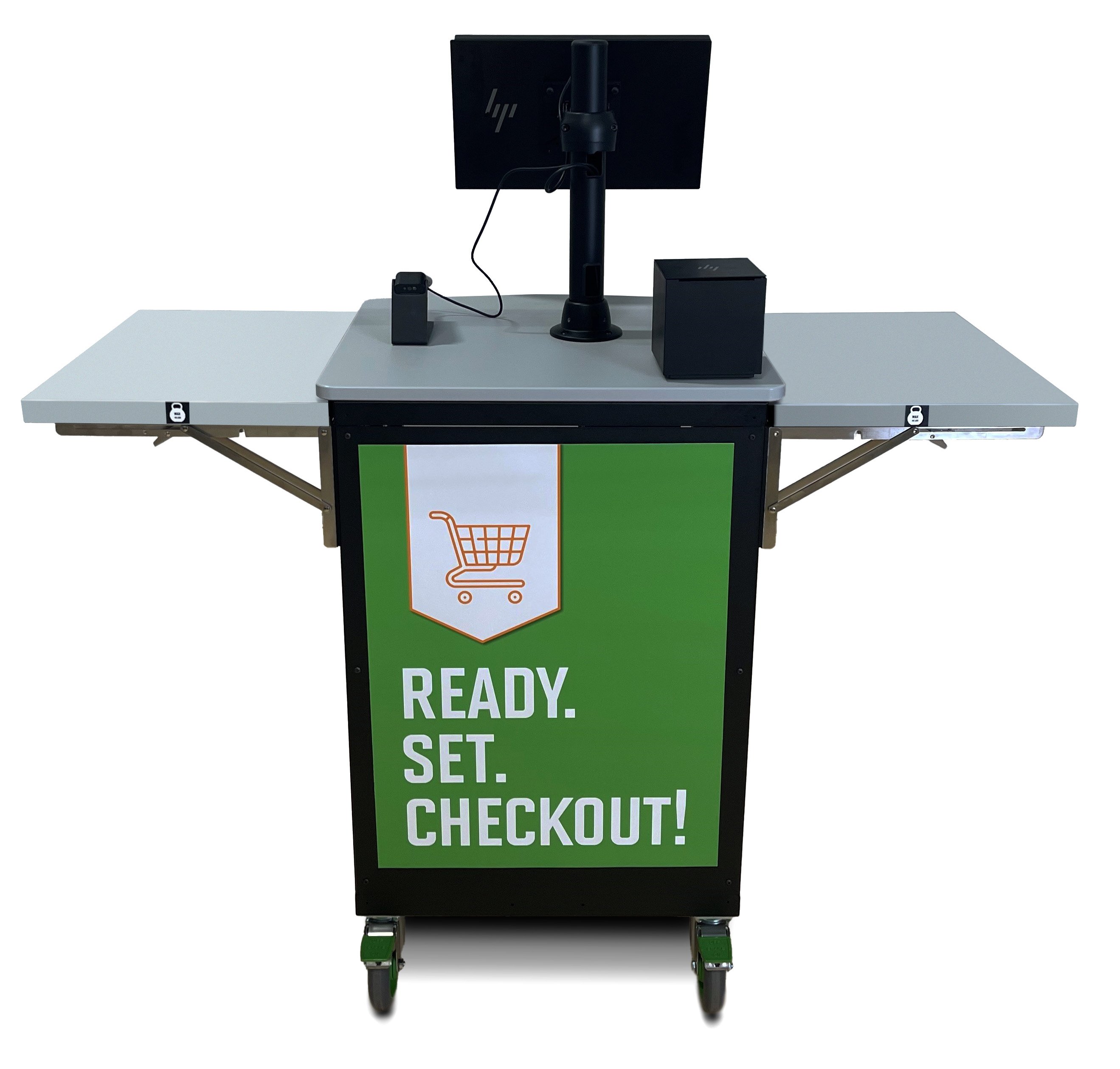

  • Purpose-built and designed to last. Compact, lightweight, sustainable, and loaded with features like drawers, winged shelves, and storage galore!
Smart Solutions for Enhanced Retail Productivity
Speedy Line Busting

Add CheckMate 1000 POS stations as needed to speed checkout and reduce potential lost sales due to long wait times.

On-demand Capacity

Add CheckMate 1000 POS stations for peak periods without extensive buildout. Store during slower months to repurpose retail space.

Retail floor real estate is a major profit center and needs to be maximized, especially during peak holiday seasons. Mobile POS carts free up valuable real estate vs. fixed register expansion and can be deployed strategically. Store Operation Managers can quantify profitability to justify the cost of deployment.

Raised Service Levels

Turn your fitting room area or another part of the store into a speedy service point by providing checkout right from the start!

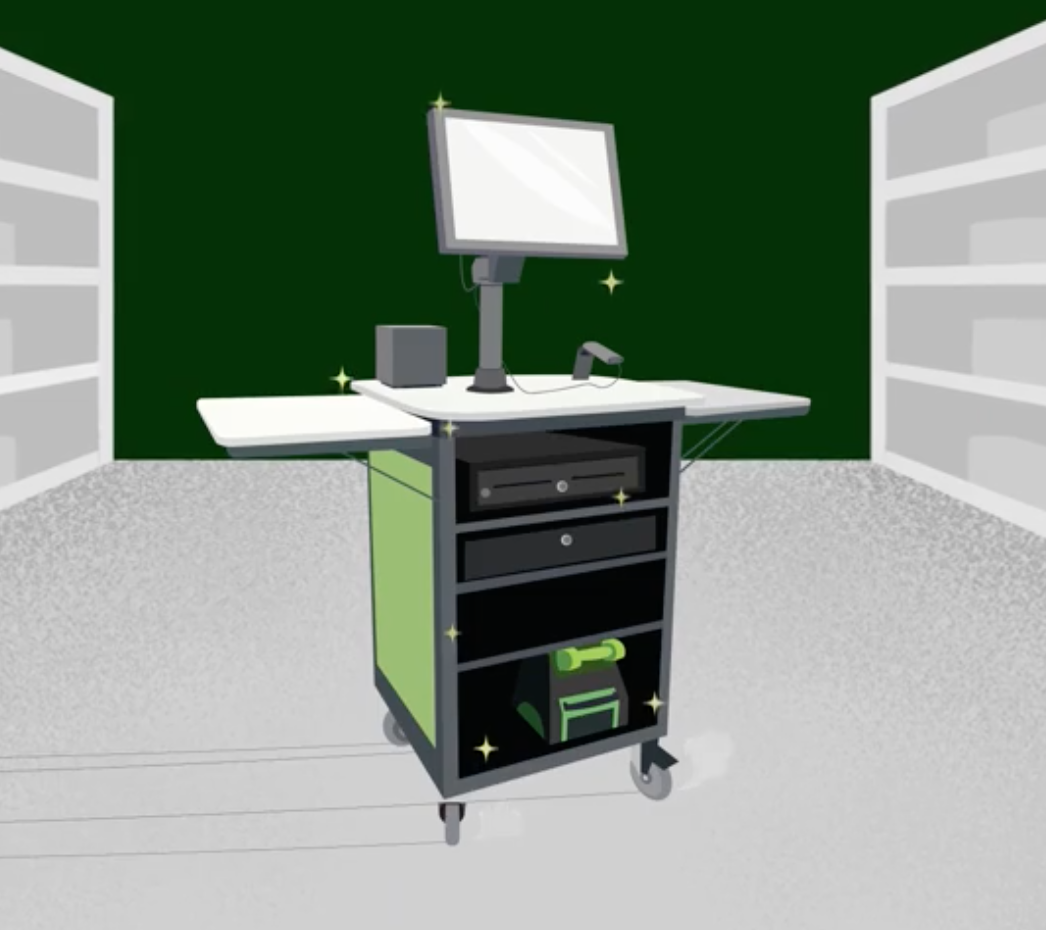

It's your cash register on wheels.  Roll out on the floor quickly with no construction, permits, or hard wiring. Simply plug in your hardware and go!

Data Sheet: CheckMate 1000

Exceptional Value Gains

  • Deliver ROI by boosting the customer experience where it matters most—right at checkout.  Speed up the line, reduce walkaways, and turn more browsers into buyers. Fewer abandoned shopping carts mean more revenue, and faster service keeps customers coming back to you.

  • Easy to roll out - low cost to get started.  No need to train your team if you’re using the same hardware as your current fixed registers. Less complexity, less stress—for everyone.

  • One cart, countless uses. From inventory counts and markdowns to returns, loyalty sign-ups, and in-store promos—our mobile solution flexes to support all your shop floor activities, helping your team stay productive and agile.

  • Managed capacity – on your terms. Scale your checkout capacity without the cost and disruption of a full buildout. Deploy instantly during peak periods, then store to optimize your footprint during slower seasons—improving both space utilization and operational agility.
  • Enabled frictionless checkout for oversized or high-quantity items—such as furniture, rugs, large electronics, or multiple garden products—wherever the purchase occurs, including near fitting rooms or outdoor areas. This improves the customer experience by eliminating the need to return to the front of the store for final checkout.

Technical Data/Configurations

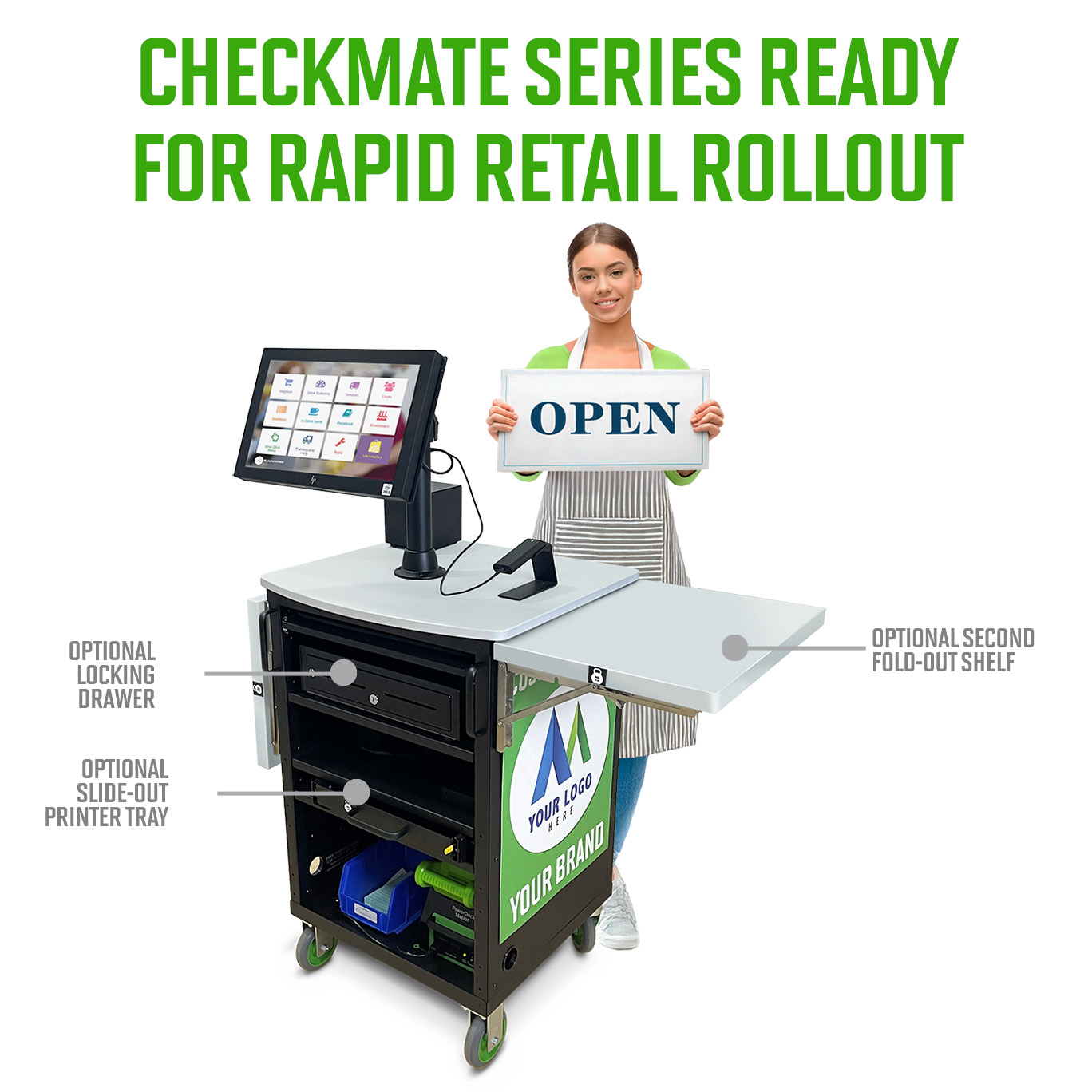

The CheckMate 1000 comes standard with: (1) top shelf, front push handles, side & rear panel enclosures (with graphic channels & pegboard), locking swivel casters, (1) locking drawer, and (1) fold-out shelf.

Shelves:

Standard top shelf: 23.75 wide x 23.75” deep (603 x 603 mm) high-density polyethylene (HDPE)
Standard folding shelf: 14.5 wide x 20” deep (358 x 508 mm) high-density polyethylene (HDPE)
Optional adjustable middle shelf: 19 wide x 18” deep (483 x 457 mm) steel; Adjustable from 18.5 – 30” (470– 762 mm)

Shelf Capacity:

Top and optional middle shelf: 60 lbs. (27 kg)
Fold-out shelf: 25 to 45 lbs.* (11.4 - 20.5 kg)

*If cart is non-powered and no equipment on-board, capacity is 25 lbs. (11.4kg). If cart has power system and fully loaded with equipment on-board, capacity is maximum 45 lbs. (20.5 kg)

Casters:

5 x 2” (127 x 51 mm) grey rubber wheels, locking swivel

Popular Optional Accessories:

B423 – Middle Shelf
B407 – Keyboard Tray
B430CM – Second Fold-out Shelf
B132 – Scanner Holder

Color & Construction:

Black powder-coated steel and HDPE

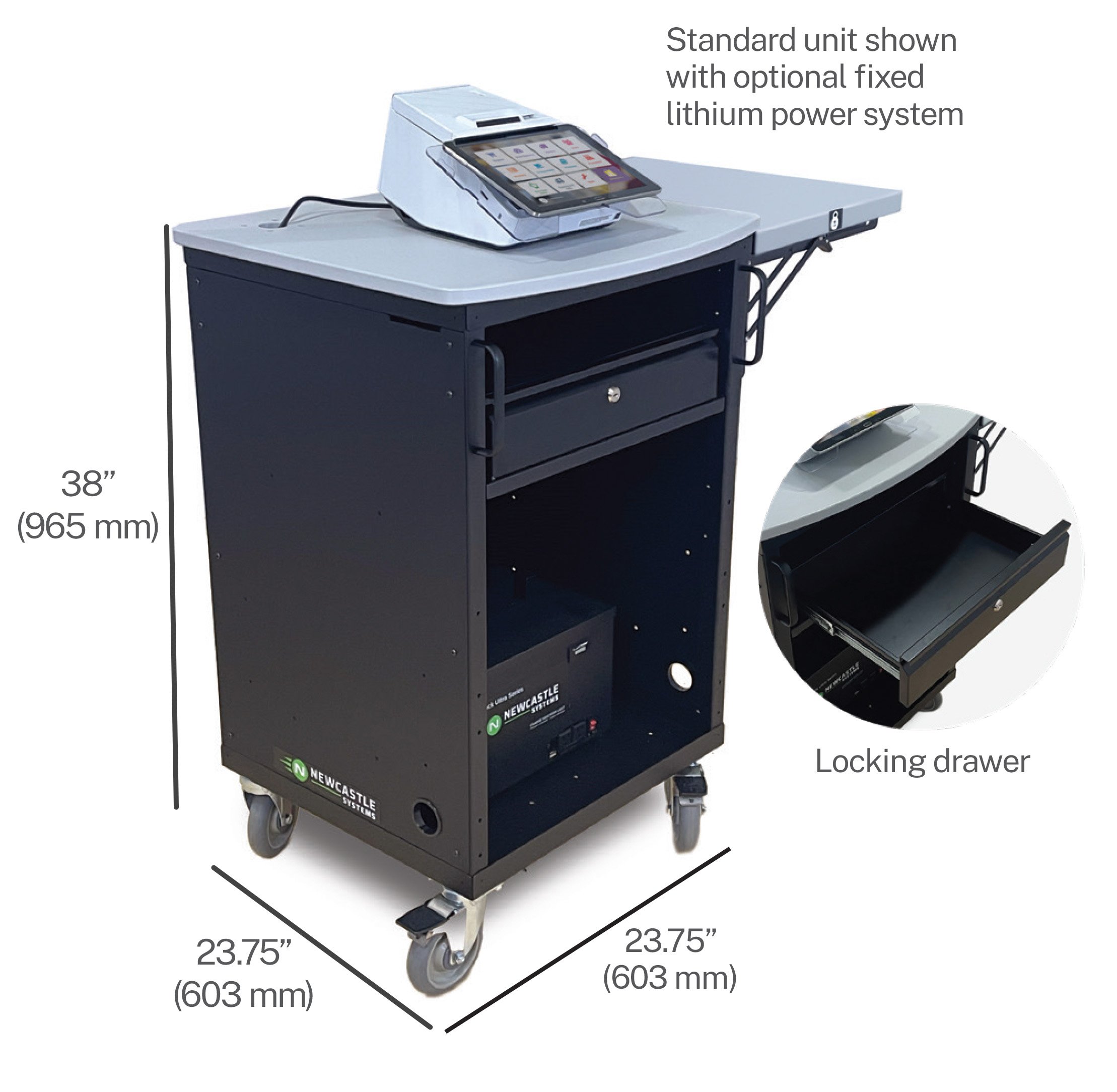

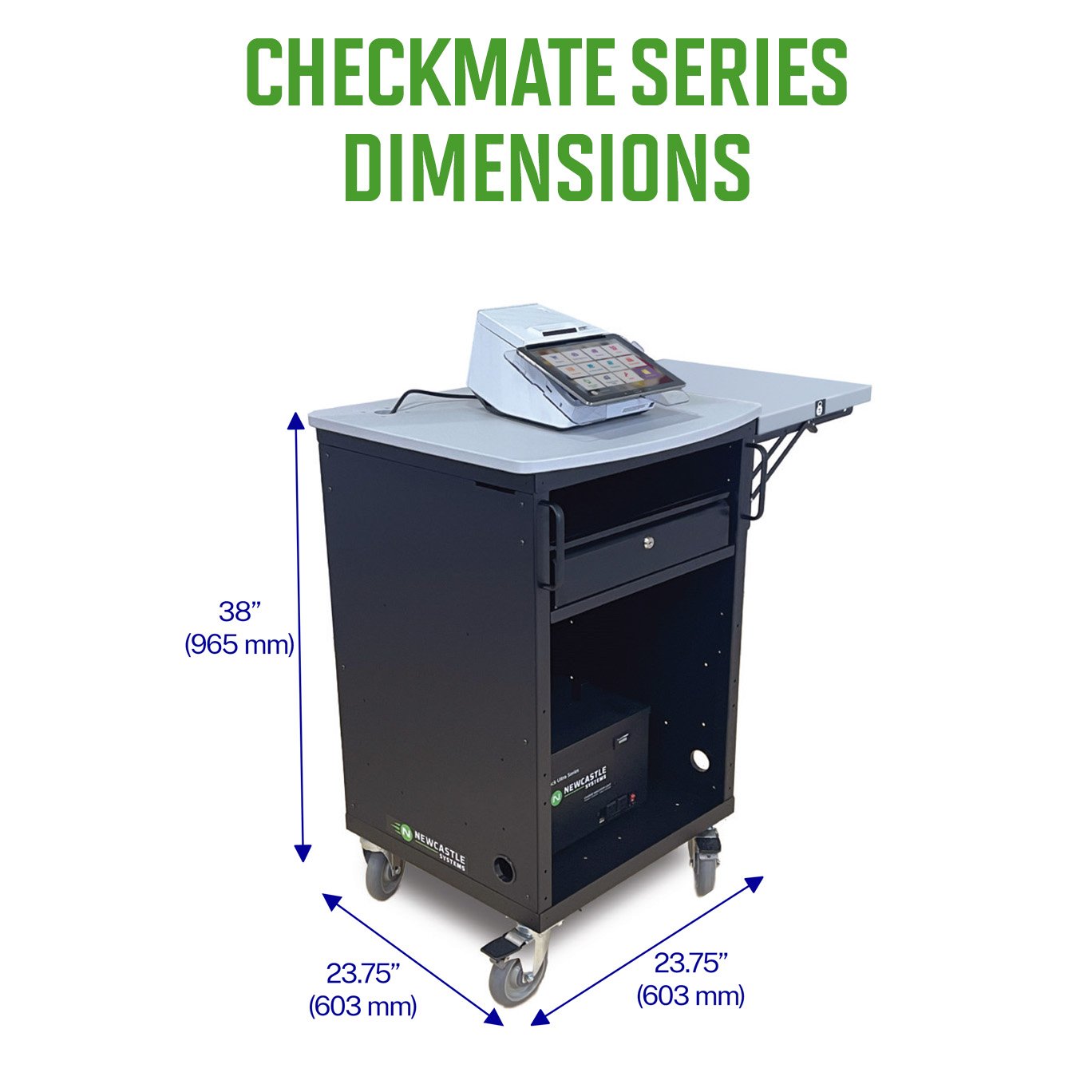

Dimensions:

23.75” W (with fold-out shelf down) / 37.5” W (with shelf extended) x 23.75” L x 38” H
(603 (with fold-out shelf down) / 953 (with shelf extended) x 603 x 965 mm)

Weight:

115 lbs. (52.3 kg)


Optional Power System:



PS102NU1M or PS102NU2M

PP2.0-LI

Typical Hardware for 8+ Hours:

Laptop or tablet, monitor, small receipt printer, and credit card reader

Battery Type:

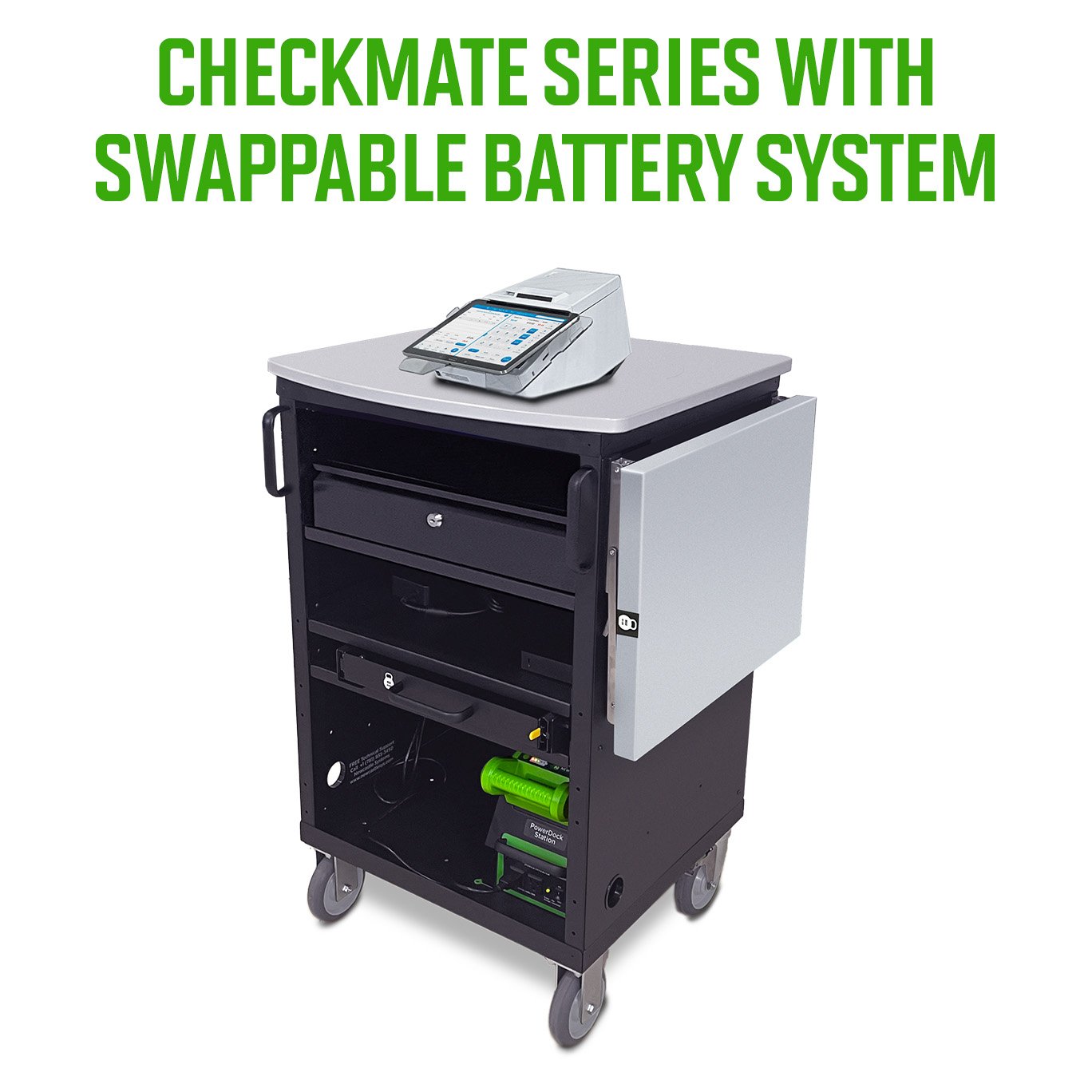

Swappable Lithium Iron Phosphate

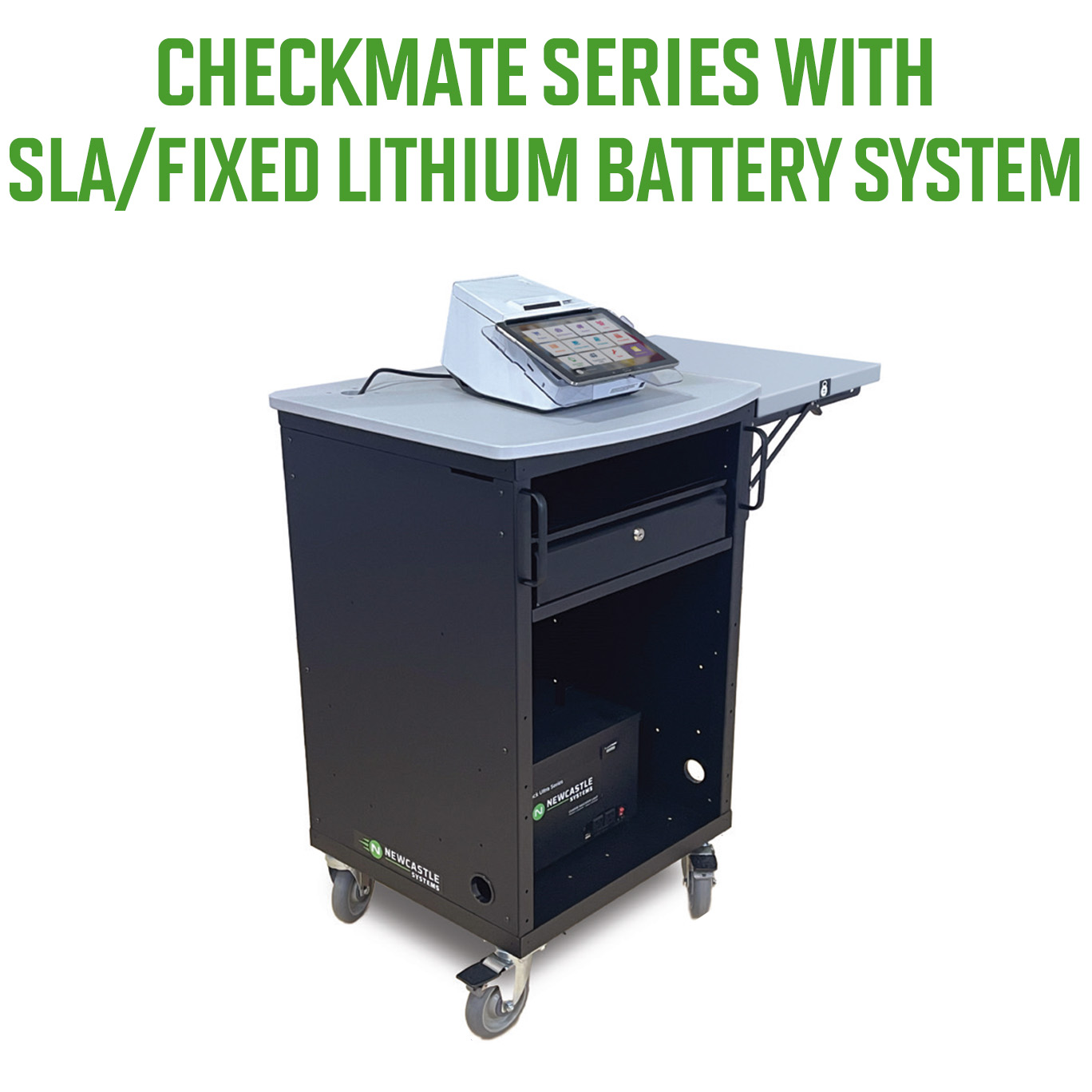

Fixed Lithium Iron Phosphate

Continuous Output Power (W):

120

150

Surge Power:

300

300

Battery Bank (Wh):

230

256

Charge Time (Hrs):

2.5

5.5

Operating Temp (F):

50-104°

32-104°

Power System Dimensions:

PowerDock: 8.5” W x 10” L x 8” H (216 x 254 x 203 mm)
Stand-alone charger: 8.5” W x 10” L x 8” H (216 x 254 x
203 mm)
Battery pack: 6” W x 11” L x 3.375” H (152 x 279 x 86 mm)

 14.5” W x 9.5” L x 9.75” H (368 x 241 x 248 mm)

Weight:

PowerDock: 5.5 lbs. (2.5 kg)
Stand-alone charger: 5.5 lbs. (2.5 kg)
Battery pack: 6 lbs. (2.7 kg)

17 lbs. (7.7 kg)
